Calcium sulfate anti-static floor tile
The main products of the company include intelligent building OA all-steel raised floor, special all-steel anti-static raised floor for computer room, special PVC raised floor for purification room, anti-static ventilation raised floor, calcium sulfate composite raised floor, high-density composite raised floor and aluminum alloy floor. The total annual production capacity of all kinds of flooring exceeds 500,000 square meters
Keywords: raised floor | steel floor | aluminum alloy floor
Classification:
Product description
STRUCTURE

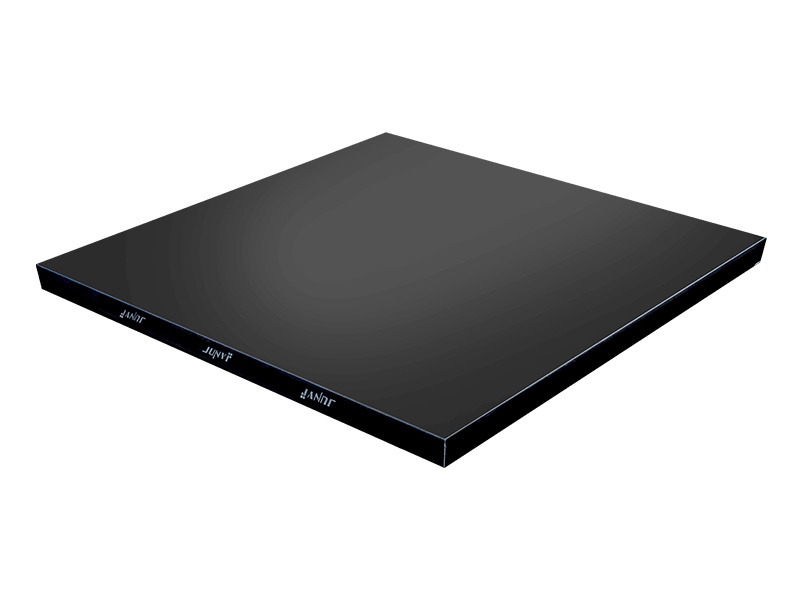

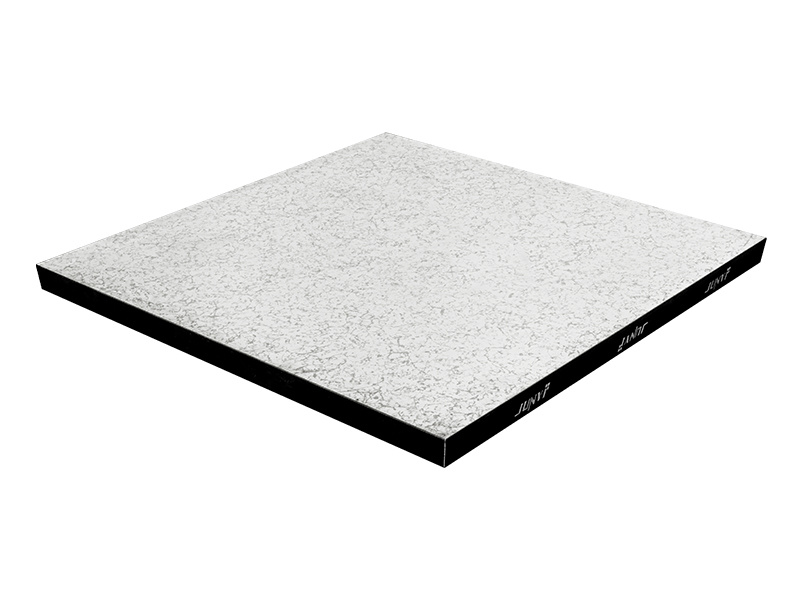

The calcium sulphate raised floor (laminate panel) is made up of high density gypsum board, finished antistatic surface covering ,galvanized steel sealed bottom,and 4 edges of conductive tapes to protect the panel from mechanical damage and wet attacking. With the excellent resistance to fire and heat, recycling environment-friendly quality , great load,and good flatness , the calcium sulphate raised floor (laminate panel) becomes the first choice by designer in data centers and commercial areas with requirements of fire proof.
APPLICATIONS
Anti-static calcium sulphate raised floor is widely used intelecommunication room, power station, computer room,factory clean room and other anti-static requiring places.
FEATURES
1. Solid panel and superb walk feeling
2. Excellent anti-static performance or ESD control
3. Adjustable floor height (up to 1,000mm or higher height requested by designers)
4. Large space void under the floor, in order to install strong and weak electricity and pipe line facilities
5. Excellent sound insulation and heat insulation
6. Recycling and environment friendly materials
7. Convenient construction, fast and flexible
TECHNICAL PARAMETER
|
Model |
Type |
Size/mm |
Fire Performance |
Concentrated load |
Ultimate load |
Uniform load |
|
JY-3101 |
FS800/Q |
600x600x30 |
A |
3560 |
≥2.0 |
16000 |
|
JY-3102 |
FS1000/B |
600x600x32 |
4450 |
23000 |
||
|
JY-3103 |
FS1250/Z |
600x600x40 |
5560 |
33000 |
